Why Low Voltage Systems Cause Fit-Out Overruns

Why Low Voltage Systems Cause the Most Budget and Timeline Overruns in Fit-Outs

A business finalizes its office fit-out budget, construction gets underway, and partway through the project someone asks who's handling the network cabling, the access control system, and the conference room AV. The answer, more often than not, is nobody, because low voltage systems were never actually included in the base construction bid. Walls are already going up. Ceilings are close to finished. Now every one of those systems means reopening surfaces that were supposed to be done.

This is one of the most common, and most expensive, planning gaps in commercial fit-outs, and it happens because low voltage work sits in an awkward spot: it's not part of core construction, it's not quite the same as electrical work, and it's easy to assume someone else has it covered.

What Counts as "Low Voltage" in a Fit-Out?

Low voltage systems run on electrical circuits under roughly 50 volts, distinct from a building's main power distribution. In a typical commercial fit-out, this covers:

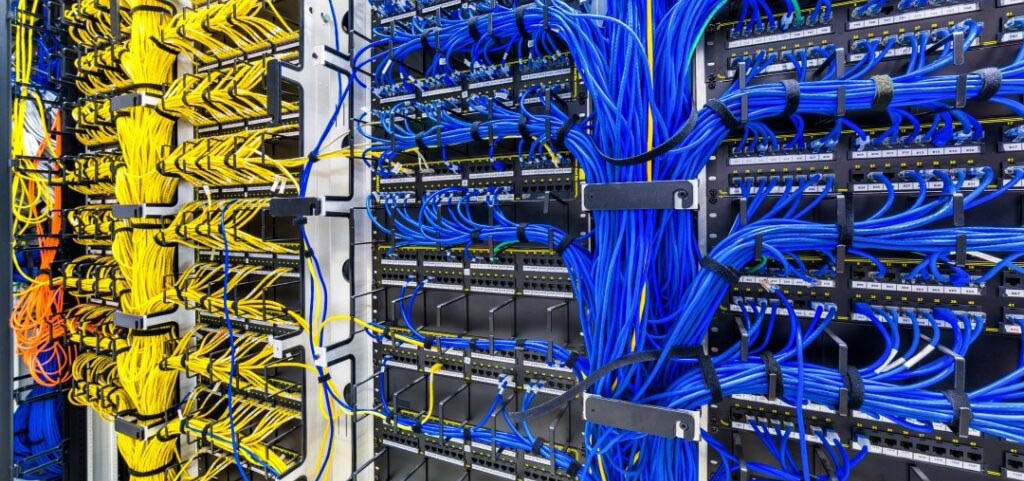

• Structured Cabling: the network backbone connecting workstations, phones, and equipment, covered in detail on InterKraft's structured cabling page.

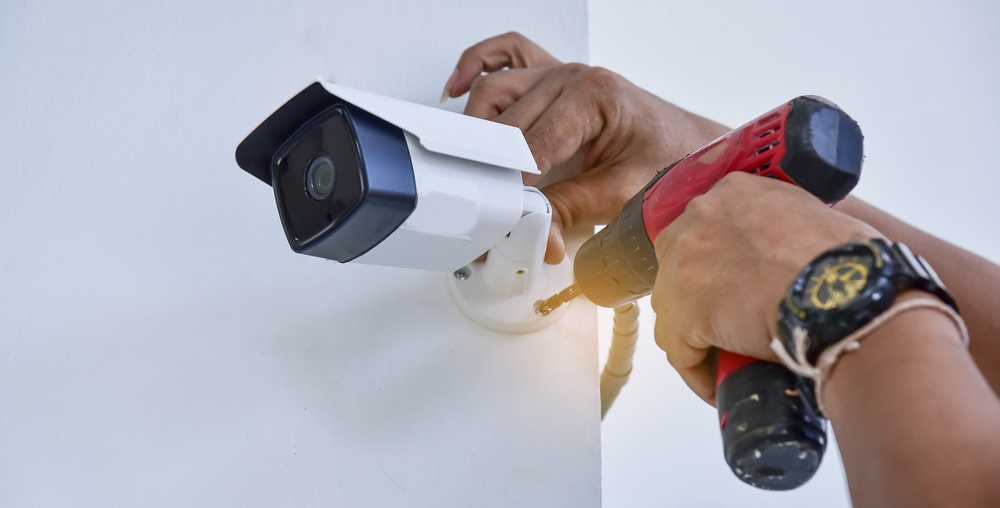

• Access Control Systems: managing and monitoring who can enter which areas, see CCTV & access control.
• Audio-Visual Systems: conferencing and presentation setups, see audio video intercom.
• Fire Alarm and Evacuation Systems: detection and occupant alerting, see public address & evacuation.
• Intrusion and Surveillance Systems: see alarm intrusion detection.

Why It Gets Left Out of the Budget

Low voltage systems are almost always excluded from base construction bids by default, not because they're an afterthought in importance, but because they're treated as a separate specialty scope from general contracting. Businesses planning a fit-out frequently assume cabling, security, and AV are baked into the main construction quote, then discover partway through the project that they need a separate budget line and a separate contractor. That discovery, late in the process, is exactly what turns a manageable line item into a scramble.

The Real Cost of Getting the Timing Wrong

Low voltage rough-in has a narrow window: it needs to happen after electrical rough-in, but before insulation and drywall close up the space. Miss that window, and retrofitting cabling or data points after walls are closed and ceilings are finished can cost 3 to 5 times more than installing it during the fit-out, since it means reopening finished surfaces instead of working with open access. There's also a second timing risk at the other end of the project: cabling finish work, terminating cables, installing faceplates, testing, is often the task that gets squeezed at the very end of a schedule, and rushed terminations are a common cause of failed tests.

Why Treating Low Voltage Like Electrical Work Backfires

Low voltage systems fall under different standards and testing requirements than general electrical work. Treating one trade as a stand-in for the other, or assuming an electrical contractor can simply absorb the cabling scope, is a common source of inspection failures, signal problems, and rework that wasn't budgeted for anywhere.

How to Actually Avoid This

1. Bring in the low voltage contractor at the design stage, not after the construction budget is already locked in.
2. Reserve space in risers, trays, and conduits before they get crowded with other trades' lines.
3. Confirm device and outlet locations once furniture and equipment layouts are final, rather than guessing early and relocating later.
4. Schedule return access for finish work explicitly, so terminations and testing aren't compressed into the last days before handover.
5. Consider coordinating cabling, security, AV, and fire alarm under one contractor rather than several separate vendors working to their own schedules on the same site.

Frequently Asked Questions

Is low voltage cabling included in a construction budget by default?
Usually not. Structured cabling, AV systems, security, and access control are almost always excluded from base construction bids and need their own budget line, which catches a lot of businesses off guard partway through a fit-out.

How much more expensive is it to add cabling after construction is finished?
Retrofitting cabling or data points after walls are closed and ceilings are finished can cost 3 to 5 times more than installing it during the fit-out, since it means reopening finished surfaces rather than working with open access.

Can electrical contractors handle low voltage cabling too?
Low voltage systems fall under different standards and testing requirements than electrical work. Treating one trade as a stand-in for the other is a common cause of inspection failures and signal problems, which is why it's usually handled as its own specialized scope.

Can one contractor handle cabling, security, AV, and fire alarm systems together?
Yes, and coordinating them under one contractor reduces the scheduling conflicts that come from managing several separate vendors on the same fit-out timeline.

InterKraft supplies and installs structured cabling, access control, AV, and fire safety systems directly, so these systems can be planned and coordinated together from the design stage rather than as separate, late-arriving vendors.
